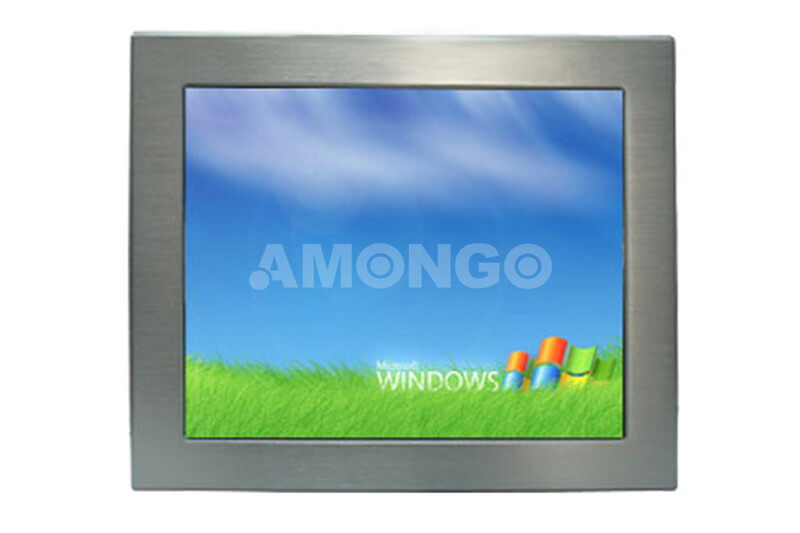

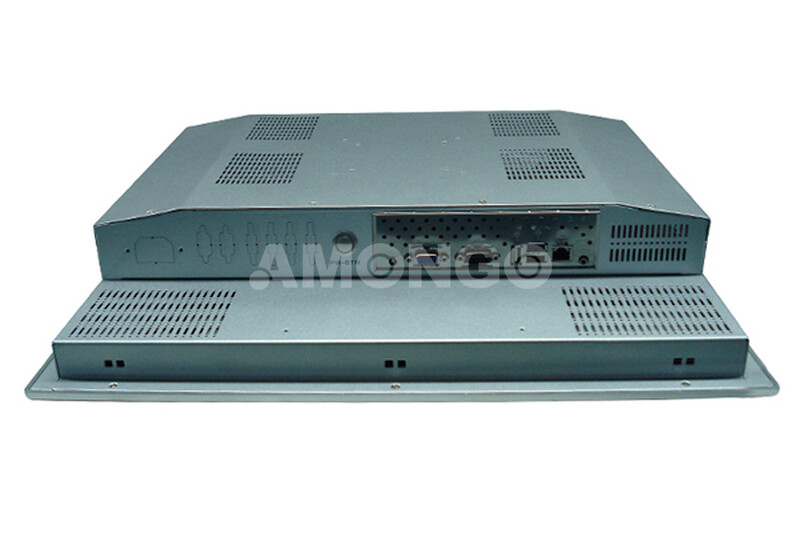

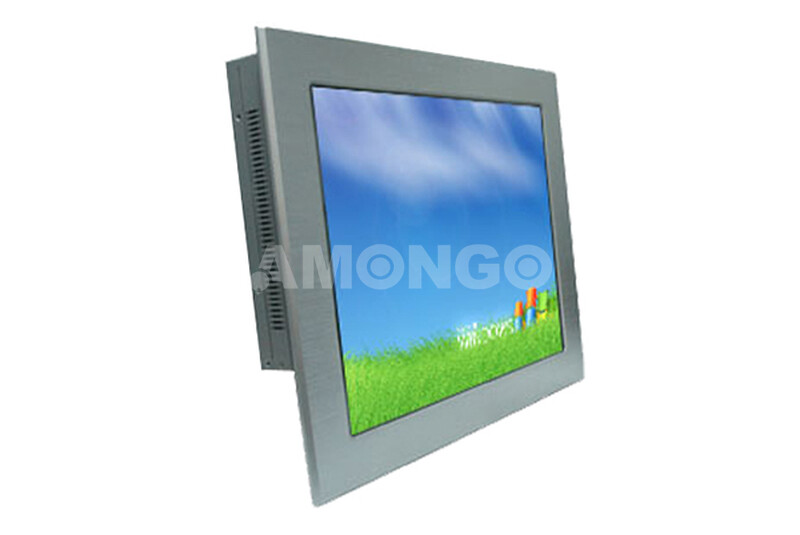

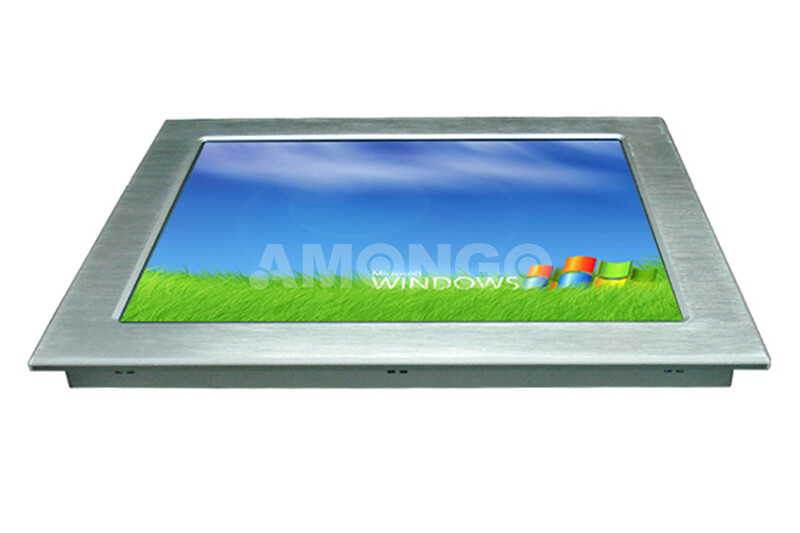

Panneau de 19 pouces

Model Name

AMG-19PPC02T5

CPU

Intel ® Bay Trail J1900 Mini-ITX(2GHz)

Memory

DDR3L 1333/1600MHz 2GB

HDD

60GB (optional)

COM ports

1 x COM port

PS/2 port

NA

VGA port

1 x VGA port

HDMI port

1 x HDMI port

USB ports

Default 2 x USB 2.0

Ethernet ports

1x10/100/1000BASE-T Gigabit Ethernet

Audio

Line-out,Mic-in

Display Size(Diagonal)

19"

Active Display Area(mm)

376.32(H)x301.06(V)

Max Resolution

1280x1024

Support Color

16.7M

Brightness(CD/㎡)

250

Contrast Ratio

1000:1

Pixel Pitch(mm)

0.264(H)x0.264(V)

Viewing Angle

170(H);160(V)

Response Time(Typ.Tr+Tf)

5ms

Backlight

LED

Type

Resistive  Touchscreen

Use connector

4pin USB2.0

Input Voltage

AC 90-264V 4A 47～63Hz

Output Rating

60W(max)

Ouput Voltage

 +12V @5A;

Dimension(VxHxT)

474.6x399.6x90.36

Operating Temperature

0～50℃

Storage Temperature

-20～60℃

Relative Humidity

5[%RH]～90[%RH]
