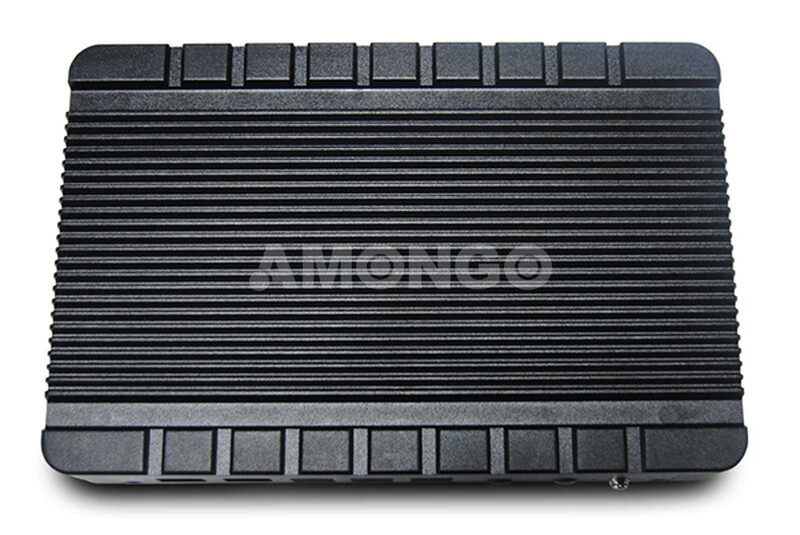

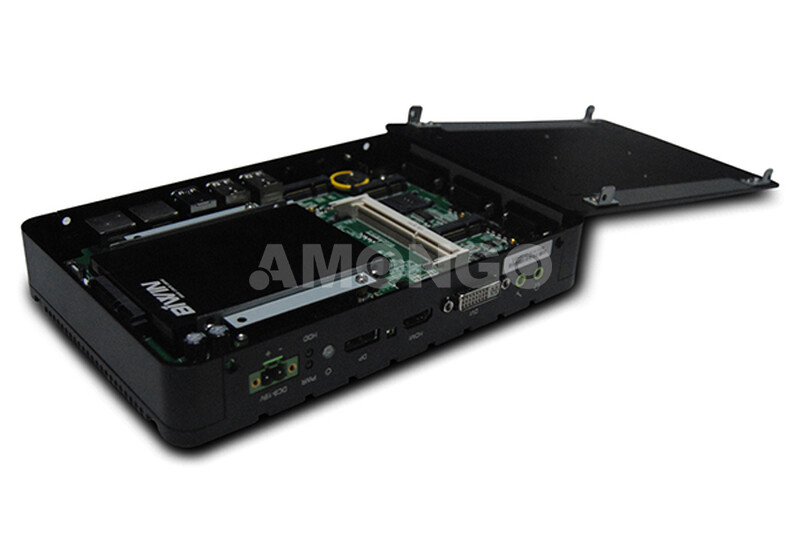

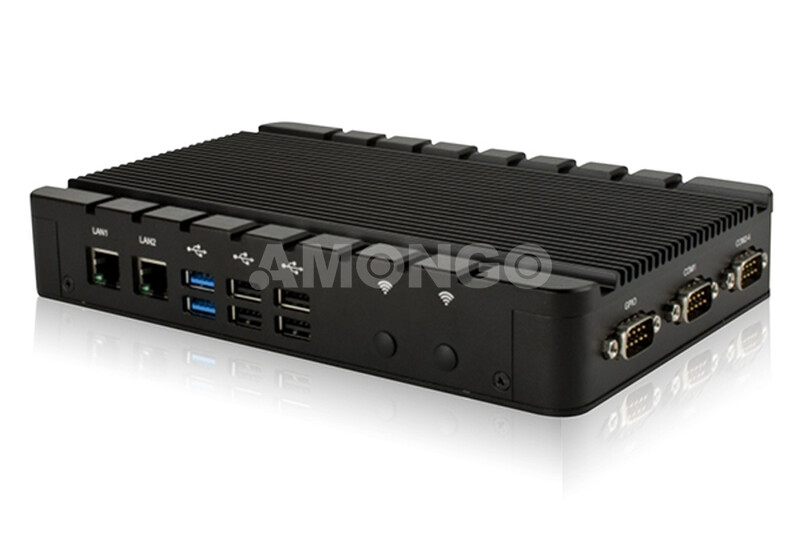

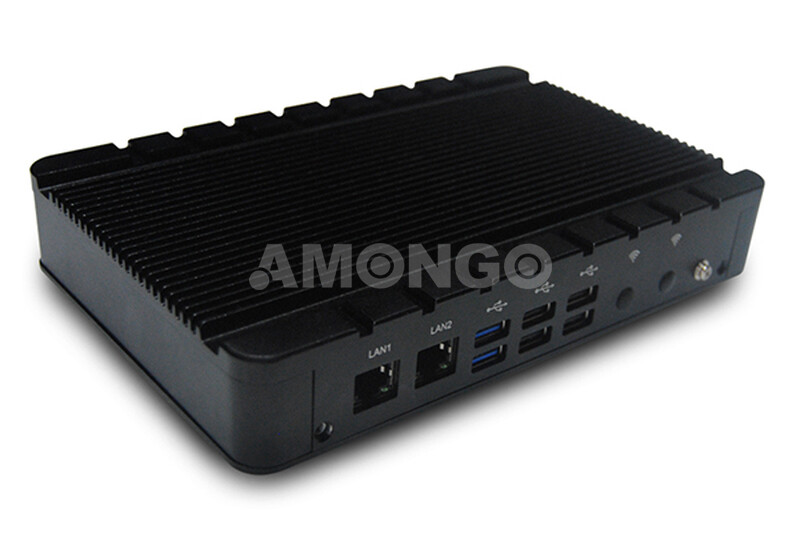

Ordinateur intégré sans ventilateur

Model no.

AMG-896

CPU

Intel ® Haswell 1.4GHz/1.6GHz Duo Core CPU

Chipset

Intel ® Haswell

BIOS

SPI BIOS

Architecture

DDR3 MAX 1666 MT/s

Capacity

MAX 16GB

Socket

SODIMM

Graphic Controller

Intel ® HD4000 Graphic media accelerator

DVI

DVI-I port

Max. resolution: 4096 * 2304

HDMI

HDMI 1.4

Max. resolution: 4096 * 2304

Display Port

DISPLAY PORT++ 1.2, support DP Dangle

Max. resolution: 3200 * 2000

Multiplex Display

HDMI+DP+DVI Synchronous or asynchronous display

Controller

LAN 1: Intel ® I210 GbE

LAN 1: Intel®I210 GbE

Realtek HD ALC662 audio decoder(Right &left Channel + Mic)

ITE8782, support 4*COM

Watch Dog Timer

0-255 sec., provide watch dog routine

Thermal

Fan-less, Aluminum passive heat sink

USB

6*USB (2*USB 3.0 PORT + 4*USB2.0 / 1.1)

Serial Port

Com1: 9-line RS232,RS232/485 (Optional),TX/RX signal, support 4000Vsurge protection

Com2-4: 3-line RS232,TX/RX signal, support 4000V surge protection

GPIO

8bits, support routine, freely define I/O,3.3V@24mA level

SMBUS

Inter integration

Mini-PCIe

1* Half-size Mini-PCIe socket, support PCIe & USB devices

1* Full-size Mini-PCIe socket, support USB 3G/4G communication Module

UIM Socket

3G UIM slot

SATA

1* standard 7Pin SATA-III & power port, max. transmission rate:3Gb/s

Laptop SATA

7+15Pin

M-SATA

1*Half-size m-SATAII socket, max. transmission rate:3Gb/s

Power Type

DC9-19V extended voltage dynamic input, support reverse,power protection, 3 Pin 5.08mm phoenix port.

Power Consumption

Typical Power: 15W

Status Indicator

HDD LED

POWER LED

Operating Temp

-20°C ~ 60°C With SSD; 0°C ~ 40°C With HDD

Storage Temp

-40°C ~ 80°C

Operating Humidity

0% ~ 90% relative humidity, non-condensing

Storage Humidity

0% ~ 90% relative humidity, non-condensing

Dimensions

210mm * 136mm * 35mm

Weight

1.28Kg

Certificate

FCC, CE, RoHS
